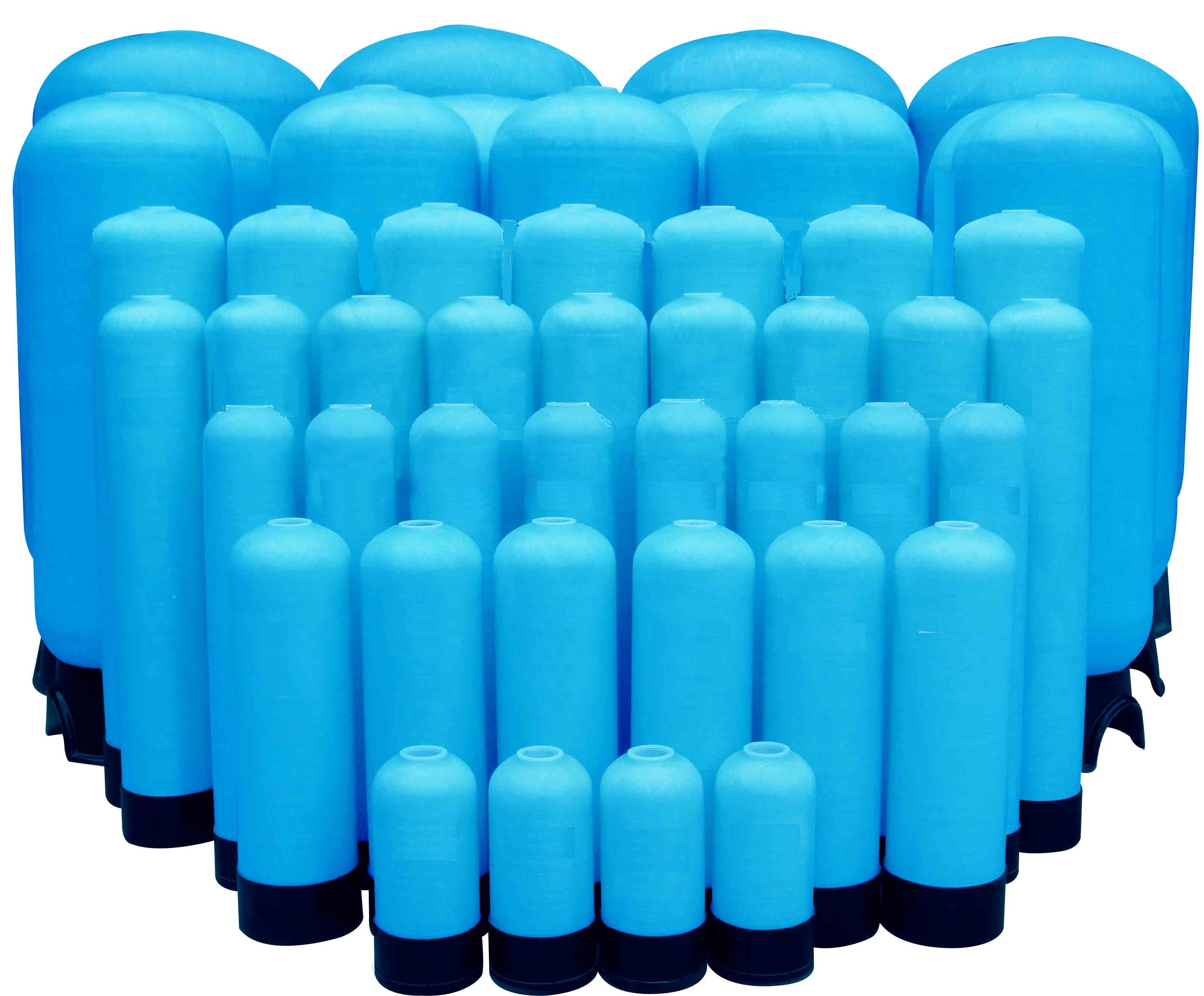

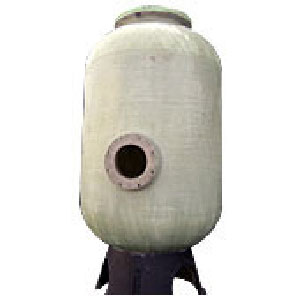

Tito FRP Filter Vessel

FRP Filters Vessels

  • ASME standard
  • Wide range available (150 mm to 4,000 mm diameter)
  • Maximum height of vessel up to 6 m
  • Available with any size top/bottom opening
  • Available with man hole, hand hole & bed plate.
  • Available with lateral header distribution system.
  • Can be customized as per the design of the client.
  • Availability & mixed bed vessel & dgt
Operating parameters :
  • Maximum operating pressure : 150 psi / 10 bar
  • Maximum operating temperature : 150of /65oc
  • Vacuum maximum : 127 mm hg
Product

Features

  • Manufactured with state of art machineries
  • 100,000 cycle test without leakage
  • Rugged & long lasting

Specification

PE & FRP lined water treatment vessels find application for treatment and storage of commercial and Industrial water. Due to the unique features and corrosion resistance material, it offers long life even in tough applications. Magnum Vessels with multiple opening types, sizes and lined materials offer many choices for clients to meet their complete requirements.

Applications

  • Media filters
  • Carbon filters
  • Softeners
  • DM plant

Material

  • PE lined vessels
  • FRP lined vessels
